In this guide, we have listed the cords and cables on the essential pieces of hardware and how to connect them.
Cords and cables
PC
| Power (1) | Network (2) | Mouse and keyboard (USB) (3) |
Printer
| Power (4) | Network (5) | Cash drawer (6) |
Card terminal
| Power (7) | Network (7) |
Cash drawer
| Printer (6) |
Scanner
| Computer (USB) (3) |
Connections
PC
(1) – Plug in the computer with the power cord.
(2) – Plug the network/internet cable into the computer and router.
(3) – Connect the mouse, keyboard, and/or scanner via the USB cable in the computer’s USB ports if needed.

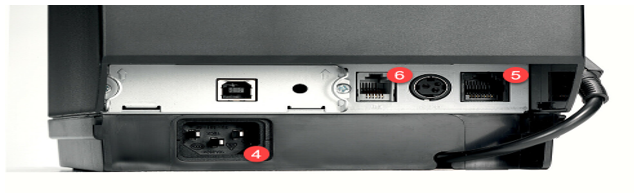

Printer
(4) – Plug in the printer with the power cord.
(5) – Plug the network/internet cable into the computer and router.
(6) - If you have a cash drawer, now connect it to the printer.
Card terminals

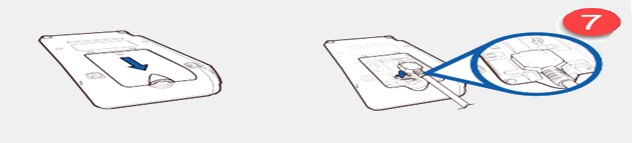

(7) – Connect your network/internet cable to the ETH port and the power cord to the power slot on the card terminal dongle.
Note:
* Click here to see our collection of hardware troubleshooting guides: Troubleshooting - Hardware
* This guide is ready for download in the PDF below.
